Log cabin log sizes in centimeters

by Kathy
(France)

Block 1<br><br>Click on each thumbnail below for a larger image<br><br>

Block 1

Click on each thumbnail below for a larger image

Block 1<br><br>Click on each thumbnail below for a larger image<br><br>
Block 2<br><br>Click on each thumbnail below for a larger image<br><br>

Kathy writes...

Please can you help with the sizing of logs for a 30cm log cabin square.


I am looking for a design like you did for the 9 inch square, i.e. light triangle and dark triangle.

Many thanks.

Kathy

I am very new to this skill so a little nervous of it...

Julie replies...

Hi Kathy!

No need to be nervous...it's only thread and fabric...both of which you can replace. Just take a deep breath and let it go.

I can help, but I've got a small problem, but not insurmountable. I live in the US (about 30 miles south of Chicago) and do not have access to metric rotary cutting tools.

Actually, I'd been wondering about this very topic--how to communicate properly to anyone outside the US that is on the metric system. (That's pretty much the whole world except us and another couple of countries.) I'm still wondering how to do it.

But for your example, I can do it. That's because all the rotary cut shapes are either squares or rectangles. The seam allowance added is the same amount for both shapes.

What I've done is to create patterns for two different blocks—one is 30cm finished and the other 33cm finished.

I can work in finished sizes. Where I get stuck is that I don't know what measurement you use for a seam allowance—again because I'm not on the metric system and don't have those tools.

So-o-o-o-o, you will need to do a bit of work on your end. I've tried to make it easy. Promise!

First what is the metric seam allowance that you use for patchwork?

Here it's a quarter inch.

By my calculations that's 0.635 centimeters. I suspect that's not a fun number to work with so use what's correct in metric.

Next, multiply that by 2 because we add a seam allowance to both sides of each dimension of a rectangle or square, i.e. the length and the width.

Then in the charts below, you will need to add that 'seam allowance times 2' to each dimension. I've made the last column just for that purpose.

For example, Patch 2 in the first chart finishes at 3cm x 9cm. Add the number you calculated to each.

If, for example, your seam allowance is .5cm, then...

2 x .5cm = 1cm

Add 1cm to each dimension to get the cut size of...

4cm x 10cm

If your seam allowances are different than .5cm, you'll substitute whatever number that is.

Does that make sense???

The Log Cabin Block Designs

These are the two variations and their cutting charts. Below the second chart is a link to download and print a worksheet where you can add the seam allowances to the finished patch sizes. (You'll need Adobe installed to do that.)

Log Cabin Block 1: Larger center square

This block finishes at 30cm x 30cm. It has four rounds of logs.

Log Cabin quilt block with a large center

CUTTING CHART for Log Cabin Quilt Block 1 – 30cm Finished
PatchFabricFinished Patch Size in CentimetersAdd 2 x Seam Allowance to each dimension
CenterCenter6x6
1Light 3x6
2Light 3x9
3Dark3x9
4Dark3x12
5Light 3x12
6Light 3x15
7Dark3x15
8Dark3x18
9Light3x18
10Light3x21
11Dark3x21
12Dark3x24
13Light3x24
14Light3x27
15Dark3x27
16Dark3x30

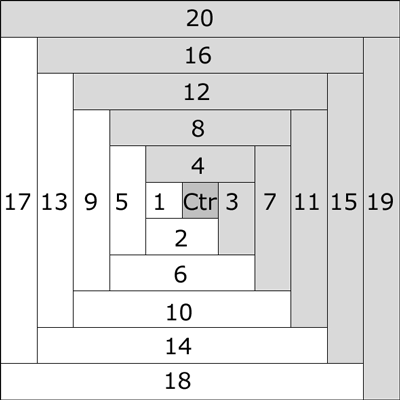

Log Cabin Block 2: Small center square

This block finishes at 33cm x 33cm. It has five rounds of logs.

Log Cabin quilt block with a small center

CUTTING CHART for Log Cabin Quilt Block 2 – 33cm Finished
PatchFabricFinished Patch Size in CentimetersAdd 2 x Seam Allowance to each dimension
CenterCenter3x3
1Light3x3
2Light3x6
3Dark3x6
4Dark3x9
5Light3x9
6Light3x12
7Dark3x12
8Dark3x15
9Light 3x15
10Light3x18
11 Dark3x18
12Dark3x21
13Light3x21
14Light3x24
15Dark3x24
16Dark3x27
17Light3x27
18Light3x30
19Dark3x30
20Dark3x33


Click here to download your worksheets.

Kathy, I hope this helps. If you would be so kind, I'd love to know what the standard seam allowance is in metric. Are your rulers in metric?

If you'd share that in the 'Comments' link below, I'd be grateful!

Thank you!

Piecefully,

Julie Baird
Editor

Comments for Log cabin log sizes in centimeters

Click here to add your own comments

seam allowance
by: magali

Hi,

I live in France and I discovered patchword one year ago.

My teacher learned me traditional patchwork and the seam allowance to be used is 0.5 cm.
However the patchwork ruler in centimeter that we find it are divided by 4 for each cm instead of divided by 10. So someone can try easily 0,75 (3/4), if necessary.

I was looking for a 30cm large log cabin, so thank you for the detailed instructions.

I will probably try
